Sealed New TCI Bit For Water Well Dilling

Price:	1000.0~8000.0 USD
Payment Terms:	T/T,L/C,WU,
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Cover all IADC code

Production Capacity: 20000 Piece/Pieces per Year

Delivery Date: Within 7-10 days after rec...

Brand Name: Wanxiang

Machine Type: Drilling Equipment

Certification: API

Processing Type: Forging

MOQ: 1PC

Means of Transport: Ocean,Land,Air,

Packing: Wooden cases or as per cust...

Place of Origin: Hebei, China (Mainland)

Type: Drill Bit

Machine: Tungsten Carbide

Use: Oilfield drilling

Size: 2 7/8" to 26"

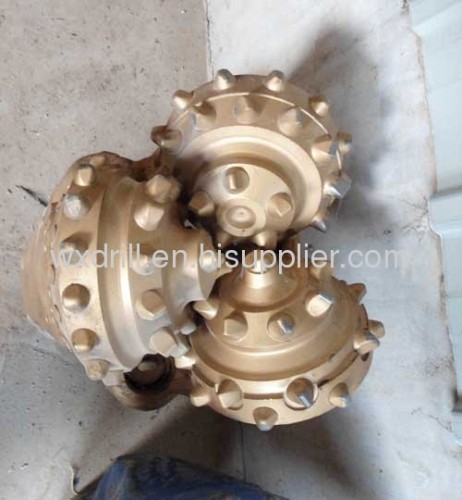

Sealed API New TCI Bit For Water Well Dilling
1.TCI bit/TCI tricone bit/drill bit
2.suitable for different formation
3.API&ISO9001 certification

The feature of Structures

1.Cutting structure this type TCI tricone bits:

The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.

2.Gauge structure this type TCI tricone bits:

Multiple gaugeprotection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.

3.Bearing structure of this type TCI tricone bits:

High precision bearing with two thrust faces. Ball lock the cone. Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.

4.Seal and Lubrication of this type TCI tricone bits:

Premium O-ring, optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase the lubricating reliability .

5.Product Application this type TCI tricone bits:

It can receive high WOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.

Bit	Size	API screw
In	mm	in	mm
3 1/2-4 1/2	89-114	2 3/8 REG	60
4 5/8-5	118-127	2 7/8 REG	73
5 1/8-7 3/8	137-187	3 1/2 REG	89
7 5/8-9	194-229	4 1/2 REG	114
9 1/2-28	241-711	6 5/8 REG	168
14 3/4-28	375-711	6 5/8 REG OR 7 5/8 REG	168,194
18 1/2-28	470-711	6 5/8 REG OR 7 5/8 REG	194,219

Sealed API New TCI Bit For Water Well Dilling

We are experienced on manufacturing rock drilling tools, various oftools for your different requirement, we can provide professinal solution ofwell driling for the suitable customized tools which will decrease the cost ofproject.
