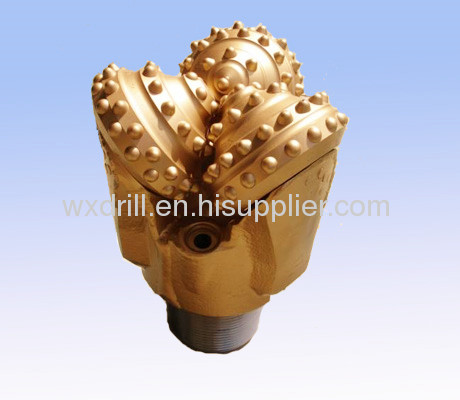

tungsten carbide tipped drill bits from China manufacturer - Hejian Wanxiang Drilling Equipments Co., Ltd.

Price:	200.0~10000.0 USD
Payment Terms:	T/T,
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Air,

Packing: Wooden cases or as your req...

Machine Type: Milling Machine

Brand Name: WX

machine type:: forging

teeth type:: insert button or milled too...

application: oil,water well drilling

Model Number:: HJ437

Production Capacity: 30000 Piece/Pieces / Year

Delivery Date: Within 7-10 days after the ...

Type: Center Drill Bit

Place of Origin:: Hebei, China (Mainland)

bearing type:: sealed journal bearing

Material: Cobalt Steel Alloys

certificate: API,ISO

Specifications
1) Material: tungsten carbide
2) Approved by API&ISO
3) Cover all IADC code, for various formations
4) Size: 2 7/8''-26''

Specialisted in producing of whole-new rotary type tricone bit, combination reamer tricone bit of TCI tricone bit & steel teeth tricone bit in China.

With ISO certificate & quality control.

Water prospecting tricone drill bit/ milled tooth tricone drill bit/ roller cone drill bit/ rock drill bit/ TC tricone bit

TCI bits series:

Soft formation TCI tricone bits:

The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit maximized to use of both conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in sticky formations.

Medium formation TCI tricone bits:

The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.

Hard formation TCI tricone bits:

The hard formation TCI tricone bits can be used to drill hard and abrasive formations. Wear resistance tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical shaped inserts are used in all rows to provide cutter durability and long life.

Medium hard formation TCI tricone bits:

The medium hard formation TCI tricone bits features robust chisel tungsten carbide inserts on the heel row and conical on the inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard formations. The HSN rubber O-ring provides adequate sealing for bearing durability.

Steel teeth bits series:

Soft formation teeth bits:

The soft formations tooth bits are used to drill low compressive strength, soft formations. Long projection tooth lengths are used on high offset cones to provide the greatest penetrations rates possible. Wear resistance hard facing is used to control tooth wear. On the softest bit types this hard facing completely covers the bit teeth.

Medium hard formations tooth bits:

The medium hard formation tooth bits are used to drill high compressive strength, medium hard formations. Shoot projection teeth with reduced crest length are used in this series of bit designs. Durable hard facing is applied to reduce tooth wear.

Model	TCI BIT, STEEL TOOTH BIT
IADC CODE	116 117 12 6127 136 137 216 217 226 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
IADC CODE	417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
available sizes:	From 2 7/8 to 26" larger sizes for hole opener bit ,reamer bit
advantage	most favourable price and best qualtity
bearing type:	sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA (rubber sealed journal bearing aircooled bearing type
Formation or layer	soft ,medium soft ,hard,medium hard,very hard formation
Button size (extra features)	Button bit,saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gague protection
Material	Alloy steel ,carbide
Packing	Wooden case or steel case
Payment terms	T/T,L/C,Western union
Delivery terms	By sea or by air
Delivery time	Within 3 to 7 days
Market	Canada, USA,Middle east ,Africa,Europe

1,Soft formations(417,437,517,537)

Features large chisel-shaped inserts to provide the highest penetration rate in the softest formations such as shales, clays, limestone and sands.

2,Soft to medium formations(617,637)Designed to drill effectively in formations such as hard limestone, dolomite, hard sands, and other formations with hard cherty.

3,Medium to hard formations(737)

For extremely hard formations such as chert, granite, flint, and taconite. Features short, closely-spaced inserts to ensure maximum penetration rate and wear resistance

Milled tooth bits

1,Soft formations(114-117)

These bits are designed to drill the softest formations such as soft shales,red beds, and clays, with high durability and maximum penetration rates.

2,Soft to medium formations(121,124,126,134,136,137)

These bits are designed to drill formations such as shales, medium soft limestone, Medium sandstone and other formations with intermittent hard streaks.

3,Medium to hard formations(213,214,215,217)

These bits are designed to drill formations such as hard sandstone, dolomite, and broken formations with hard cherty streaks
